Product range
See the range of Lucenario aerante INOX products here
Lucernario aerante INOX
These products are available in the catalogue
Model XS55
Product dimensions: cm. 55 x 130 x H 13
Luminous compartment: cm. 34.6 x 99.6
Insole hole: "from-to" cm. 35 - 47 x 100 - 114
Price: € 1160 + VAT
Model XS85
Product dimensions: cm. 85 x 130 x H 13
Luminous compartment: cm. 64.6 x 99.6
Insole hole: "from-to" cm. 65 - 77 x 100 - 114
Price: € 1380 + VAT
Model S65
Product dimensions: cm. 65 x 150 x H 13
Luminous compartment: cm. 44.6 x 119.6
Insole hole: "from-to" cm. 45 - 57 x 120 - 134
Price: € 1270 + VAT
Model S85
Product dimensions: cm. 85 x 150 x H 13
Luminous compartment: cm. 64.6 x 119.6
Insole hole: "from-to" cm. 65 - 77 x 120 - 134
Price: € 1490 + VAT
Model M65
Product dimensions: cm. 65 x 170 x H 13
Luminous compartment: cm. 44.6 x 139.6
Insole hole: "from-to" cm. 45 - 57 x 140 - 154
Price: € 1380 + VAT
Model L65
Product dimensions: cm. 65 x 190 x H 13
Luminous compartment: cm. 44.6 x 159.6
Insole hole: "from-to" cm. 45 - 57 x 160 - 174
Price: € 1490 + VAT
On request
These products can be ordered
Openable, for swimming pools
These products can be ordered
MX-A110
Product dimensions: cm. 110 x 110 x H 13
Openable compartment dimensions: cm. 79,6 x 79,6
Slab hole dimensions: cm. min 80 x 80 - max 94 x 94
Price: € 1980 + VAT
The price includes an Electric extractor fan type OUT
The whole range of openable Lucernario aerante INOX, starting today, is tileable.
The maximum height allowed for the tile is 13 mm (tile and glue included).
Price for the tileable version: € 2260 + VAT (tiles not included)
MX-A130
Product dimensions: cm. 130 x 130 x H 13
Openable compartment dimensions: cm. 99,6 x 99,6
Slab hole dimensions: cm. min 100 x 100 - max 114 x 114
Price: € 2340 + VAT
The price includes an Electric extractor fan type OUT
The whole range of openable Lucernario aerante INOX, starting today, is tileable.
The maximum height allowed for the tile is 13 mm (tile and glue included).
Price for the tileable version: € 2620 + VAT (tiles not included)

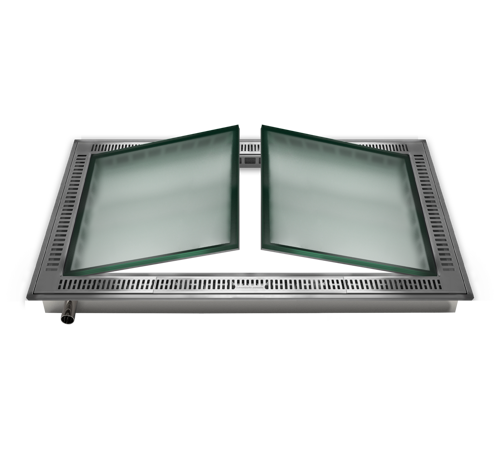

MX-A200
Double-wing
Product dimensions: cm. 110 x 199,5 x H 13
Openable compartment dimensions: cm. 79,6 x 168,3
Slab hole dimensions: cm. min 80 x 170 - max 94 x 184
Price: € 3170 + VAT
The price includes an Electric extractor fan type OUT
The whole range of openable Lucernario aerante INOX, starting today, is tileable.
The maximum height allowed for the tile is 13 mm (tile and glue included).
Price for the tileable version: € 3540 + VAT (tiles not included)
Accessories
These products can be ordered
Circular electric extractor fan
It draws up to 40 mc/h. 24V powered. Transformer excluded.
Price: € 174 + VAT
Electric extractor fan type OUT
It draws up to 70 mc/h. 24V powered. Transformer excluded.
Price: € 204 + VAT
Electric fan type IN-OUT
Up to 70 mc/h pulling out or letting in. 24V powered. Transformer excluded.
Price: € 374 + VAT
Accessories
These products can be ordered
Air conveyor for CMV 110
Conveyor for pipes diam. 110 mm for controlled mechanical ventilation
Price: € 124 + VAT
Air conveyor for CMV 150
Conveyor for pipes diam. 150 mm for controlled mechanical ventilation
Price: € 144 + VAT
Air conveyor for CMV 180
Conveyor for pipes diam. 180 mm for controlled mechanical ventilation
Prezzo: € 184 + IVA
